Custom Scripts

Custom scripting was introduced to provide a way for users to execute custom logic from within the NetBox UI. Custom scripts enable the user to directly and conveniently manipulate NetBox data in a prescribed fashion. They can be used to accomplish myriad tasks, such as:

  • Automatically populate new devices and cables in preparation for a new site deployment
  • Create a range of new reserved prefixes or IP addresses
  • Fetch data from an external source and import it to NetBox

Custom scripts are Python code and exist outside of the official NetBox code base, so they can be updated and changed without interfering with the core NetBox installation. And because they're completely custom, there is no inherent limitation on what a script can accomplish.

Writing Custom Scripts

All custom scripts must inherit from the extras.scripts.Script base class. This class provides the functionality necessary to generate forms and log activity.

from extras.scripts import Script

class MyScript(Script):
    ...

Scripts comprise two core components: a set of variables and a run() method. Variables allow your script to accept user input via the NetBox UI, but they are optional: If your script does not require any user input, there is no need to define any variables.

The run() method is where your script's execution logic lives. (Note that your script can have as many methods as needed: this is merely the point of invocation for NetBox.)

class MyScript(Script):
    var1 = StringVar(...)
    var2 = IntegerVar(...)
    var3 = ObjectVar(...)

    def run(self, data, commit):
        ...

The run() method should accept two arguments:

  • data - A dictionary containing all of the variable data passed via the web form.
  • commit - A boolean indicating whether database changes will be committed.

Note

The commit argument was introduced in NetBox v2.7.8. Backward compatibility is maintained for scripts which accept only the data argument, however beginning with v2.10 NetBox will require the run() method of every script to accept both arguments. (Either argument may still be ignored within the method.)

Defining script variables is optional: You may create a script with only a run() method if no user input is needed.

Any output generated by the script during its execution will be displayed under the "output" tab in the UI.

By default, scripts within a module are ordered alphabetically in the scripts list page. To return scripts in a specific order, you can define the script_order variable at the end of your module. The script_order variable is a tuple which contains each Script class in the desired order. Any scripts that are omitted from this list will be listed last.

from extras.scripts import Script

class MyCustomScript(Script):
    ...

class AnotherCustomScript(Script):
    ...

script_order = (MyCustomScript, AnotherCustomScript)

Module Attributes

name

You can define name within a script module (the Python file which contains one or more scripts) to set the module name. If name is not defined, the module's file name will be used.

Script Attributes

Script attributes are defined under a class named Meta within the script. These are optional, but encouraged.

name

This is the human-friendly names of your script. If omitted, the class name will be used.

description

A human-friendly description of what your script does.

commit_default

The checkbox to commit database changes when executing a script is checked by default. Set commit_default to False under the script's Meta class to leave this option unchecked by default.

commit_default = False

Accessing Request Data

Details of the current HTTP request (the one being made to execute the script) are available as the instance attribute self.request. This can be used to infer, for example, the user executing the script and the client IP address:

username = self.request.user.username
ip_address = self.request.META.get('HTTP_X_FORWARDED_FOR') or \
    self.request.META.get('REMOTE_ADDR')
self.log_info(f"Running as user {username} (IP: {ip_address})...")

For a complete list of available request parameters, please see the Django documentation.

Reading Data from Files

The Script class provides two convenience methods for reading data from files:

  • load_yaml
  • load_json

These two methods will load data in YAML or JSON format, respectively, from files within the local path (i.e. SCRIPTS_ROOT).

Logging

The Script object provides a set of convenient functions for recording messages at different severity levels:

  • log_debug
  • log_success
  • log_info
  • log_warning
  • log_failure

Log messages are returned to the user upon execution of the script. Markdown rendering is supported for log messages.

Variable Reference

Default Options

All custom script variables support the following default options:

  • default - The field's default value
  • description - A brief user-friendly description of the field
  • label - The field name to be displayed in the rendered form
  • required - Indicates whether the field is mandatory (all fields are required by default)
  • widget - The class of form widget to use (see the Django documentation)

StringVar

Stores a string of characters (i.e. text). Options include:

  • min_length - Minimum number of characters
  • max_length - Maximum number of characters
  • regex - A regular expression against which the provided value must match

Note that min_length and max_length can be set to the same number to effect a fixed-length field.

TextVar

Arbitrary text of any length. Renders as a multi-line text input field.

IntegerVar

Stores a numeric integer. Options include:

  • min_value - Minimum value
  • max_value - Maximum value

BooleanVar

A true/false flag. This field has no options beyond the defaults listed above.

ChoiceVar

A set of choices from which the user can select one.

  • choices - A list of (value, label) tuples representing the available choices. For example:
CHOICES = (
    ('n', 'North'),
    ('s', 'South'),
    ('e', 'East'),
    ('w', 'West')
)

direction = ChoiceVar(choices=CHOICES)

In the example above, selecting the choice labeled "North" will submit the value n.

MultiChoiceVar

Similar to ChoiceVar, but allows for the selection of multiple choices.

ObjectVar

A particular object within NetBox. Each ObjectVar must specify a particular model, and allows the user to select one of the available instances. ObjectVar accepts several arguments, listed below.

  • model - The model class
  • query_params - A dictionary of query parameters to use when retrieving available options (optional)
  • null_option - A label representing a "null" or empty choice (optional)

To limit the selections available within the list, additional query parameters can be passed as the query_params dictionary. For example, to show only devices with an "active" status:

device = ObjectVar(
    model=Device,
    query_params={
        'status': 'active'
    }
)

Multiple values can be specified by assigning a list to the dictionary key. It is also possible to reference the value of other fields in the form by prepending a dollar sign ($) to the variable's name.

region = ObjectVar(
    model=Region
)
site = ObjectVar(
    model=Site,
    query_params={
        'region_id': '$region'
    }
)

MultiObjectVar

Similar to ObjectVar, but allows for the selection of multiple objects.

FileVar

An uploaded file. Note that uploaded files are present in memory only for the duration of the script's execution: They will not be automatically saved for future use. The script is responsible for writing file contents to disk where necessary.

IPAddressVar

An IPv4 or IPv6 address, without a mask. Returns a netaddr.IPAddress object.

IPAddressWithMaskVar

An IPv4 or IPv6 address with a mask. Returns a netaddr.IPNetwork object which includes the mask.

IPNetworkVar

An IPv4 or IPv6 network with a mask. Returns a netaddr.IPNetwork object. Two attributes are available to validate the provided mask:

  • min_prefix_length - Minimum length of the mask
  • max_prefix_length - Maximum length of the mask

Running Custom Scripts

Note

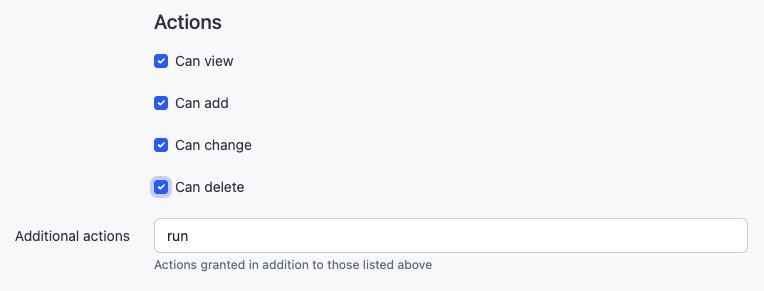

To run a custom script, a user must be assigned the extras.run_script permission. This is achieved by assigning the user (or group) a permission on the Script object and specifying the run action in the admin UI as shown below.

Adding the run action to a permission

Via the Web UI

Custom scripts can be run via the web UI by navigating to the script, completing any required form data, and clicking the "run script" button.

Via the API

To run a script via the REST API, issue a POST request to the script's endpoint specifying the form data and commitment. For example, to run a script named example.MyReport, we would make a request such as the following:

curl -X POST \
-H "Authorization: Token $TOKEN" \
-H "Content-Type: application/json" \
-H "Accept: application/json; indent=4" \
http://netbox/api/extras/scripts/example.MyReport/ \
--data '{"data": {"foo": "somevalue", "bar": 123}, "commit": true}'

Example

Below is an example script that creates new objects for a planned site. The user is prompted for three variables:

  • The name of the new site
  • The device model (a filtered list of defined device types)
  • The number of access switches to create

These variables are presented as a web form to be completed by the user. Once submitted, the script's run() method is called to create the appropriate objects.

from django.utils.text import slugify

from dcim.choices import DeviceStatusChoices, SiteStatusChoices
from dcim.models import Device, DeviceRole, DeviceType, Manufacturer, Site
from extras.scripts import *


class NewBranchScript(Script):

    class Meta:
        name = "New Branch"
        description = "Provision a new branch site"
        field_order = ['site_name', 'switch_count', 'switch_model']

    site_name = StringVar(
        description="Name of the new site"
    )
    switch_count = IntegerVar(
        description="Number of access switches to create"
    )
    manufacturer = ObjectVar(
        model=Manufacturer,
        required=False
    )
    switch_model = ObjectVar(
        description="Access switch model",
        model=DeviceType,
        query_params={
            'manufacturer_id': '$manufacturer'
        }
    )

    def run(self, data, commit):

        # Create the new site
        site = Site(
            name=data['site_name'],
            slug=slugify(data['site_name']),
            status=SiteStatusChoices.STATUS_PLANNED
        )
        site.save()
        self.log_success(f"Created new site: {site}")

        # Create access switches
        switch_role = DeviceRole.objects.get(name='Access Switch')
        for i in range(1, data['switch_count'] + 1):
            switch = Device(
                device_type=data['switch_model'],
                name=f'{site.slug}-switch{i}',
                site=site,
                status=DeviceStatusChoices.STATUS_PLANNED,
                device_role=switch_role
            )
            switch.save()
            self.log_success(f"Created new switch: {switch}")

        # Generate a CSV table of new devices
        output = [
            'name,make,model'
        ]
        for switch in Device.objects.filter(site=site):
            attrs = [
                switch.name,
                switch.device_type.manufacturer.name,
                switch.device_type.model
            ]
            output.append(','.join(attrs))

        return '\n'.join(output)
